1:33 [MTM] Hollow Shaft AGV Motor 24V 150W Watt BLDC Drip Proof With Controller As AGV Wheel Motor With Driver Made In Taiwan (MIT)

1 Set
MOQ
$399.00(1 - 99 Sets) $299.00(>=100 Sets)
Price
1:33 [MTM] Hollow Shaft AGV Motor 24V 150W Watt BLDC Drip Proof With Controller As AGV Wheel Motor With Driver Made In Taiwan (MIT)
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1 Year
Model Number: BL90S24G8RZ0430150, F01 Driver (BLDDC024G1002)
Usage: AGV
Type: GEAR MOTOR
Torque: 12.8N.M
Construction: Permanent Magnet
Commutation: Brushless
Protect Feature: Drip-proof
Speed(RPM): 3000RPM
Continuous Current(A): 8.5A
Efficiency: IE 4
Gearbox: Hollow Shaft 1:33
AGV Navigation Method: Magnetic / QR Code
Recommend Vehicle Total Weight: 200~500KG
Certification: Ce, RoHS
Basic Infomation
Certification: ce, RoHS
Model Number: BL90S24G8RZ0430150, F01 Driver (BLDDC024G1002)
Payment & Shipping Terms
Packaging Details: 1 set = motor*2 + driver*1
Product Description
Product Overview
MTM AGV wheel motor series can provide our customers a set of power module which is included BLDC motor, motor controller, and gearbox. For this entry model, we provide you a good cost–performance solution hollow shaft gearbox. This power module is already applied in more than 2000 AGVs all over the world which is included some international company. MTM provide you power module from 15W to 7000W and this entry model provide you from 100W to 350W solutions.
Products Description
Simple but Tough
Motor: 24V / 150W / 3000RPM
Gearbox Ratio: 1:33
Motor Controller: Rated 10A / Peak 20A
Rated Output: 100pm / 12.8N-m
Recommend AGV Load + Weight: 200~500KG
Control Method: 6 Input / 2 Input
Voltage(Potentiometer), Pulse, PWM
RS-232(Modbus ASCII)/RS-485(Modbus RTU)
Series Product SPEC
Motor Output
100W
150W
200W
350W
Gearbox Ratio
1:20 / 1:33
1:20 / 1:33
1:20 / 1:33
1:20 / 1:30 / 1:50
Speed Output(rpm)
165 / 100
165 / 100
165 / 100
150 / 100 / 60
Rated Torque Output(N-m)
5.1 / 8.5
7.8 / 12.8
10.1 / 17.1
17.8 / 26.8 / 44.6
Max Torque Output(N-m)
10.1 / 17.1
15.6 / 25.6
20.2 / 30
25.6 / 53.6 / 89.2
Rated Voltage
24V
24V
24V or 48V
24V or 48V
Rated Current
6.3A
8.5A
11.9A
18A
Radial Force
1300N
1680N
Axial Force
500N
300N
Optional Power Off Brake
None
2N-m / None
2N-m
2N-m
Controller Communication
RS485/RS232 (Modbus)
Controler
6 Input 2 Input
4 Input 2 Output
Speed Control
Voltage / VR(Potentiometer) / PWM / Communication / Digital Index(M0, M1 M2)

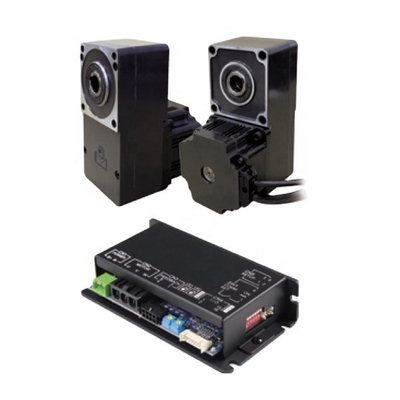

Product Configuration
24V 150W 3300rpm BLDC motor
Motor Controller for BLDC
Product Paramenters
Certifications
About BLDC Series
From 15W to 9000W
MTM have a complete BLDC product line from 15w to 9000w, from 100rpm to 8000rpm, from 12VDC to 96VDC, from 100VAC to 220VAC.
Standard BL42 products: 15W~30W
Standard BL60 products: 40W~120W
Standard BL90 products: 100W~500W
Standard BL104 products: 400W~1000W
Standard BL130 products: 1000W~2000W
Standard BL180 products: 2000W~9000W
Optional Power off brake: 2N-m~10N-m
Gearbox motor is available from 40W~7000W
Applications
Brush motor is our root, Servo motor and brushless motor is our future.
The main product of MTM is for vehicles with low voltage DC power. If you are looking for a DC power servo motor, BLDC, brush motor or gearbox, MTM is your best choice.
Company Profile
About MTM
Motion Tech is the leading role in motor industry in Taiwan and leading brand of medical electric wheelchair, E-scooter all over the world.. We devote to manufacture PMDC motors and BLDC motors since 2002.
The main products of MTM is power module which included motor, gearbox and motor controller. MTM provide customization service which included design, test and manufacture to create a product with quality, efficiency and reliability.
