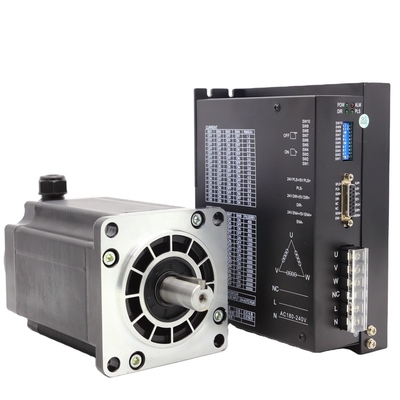

110BYG high torque 16Nm Nema43 3 phase stepper motor cnc stepper motor MiGE stepper motor driver kit FHB311118+3DM2270MH

1 Piece
MOQ
$146.00(1 - 49 Pieces) $142.00(>=50 Pieces)
Price
110BYG high torque 16Nm Nema43 3 phase stepper motor cnc stepper motor MiGE stepper motor driver kit FHB311118+3DM2270MH
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 3months-1year
Model Number: FHB311118+3DM2270MH
Phase: 3
Type: Hybrid
Current / Phase: 6.4A
Product Name: Nema 43 Stepper Motor
Step Angle(degrees): 1.2deg
Motor Length: 185mm
Shaft Diameter: 19mm
Torque: 16Nm
Environment Temperature: -25 ℃ + 55 ℃
Insulation Resistan: 100MΩ
Weight: 10.5kg
Inductance: 2.96mH
Insulation Grade: B Class
Basic Infomation
Model Number: FHB311118+3DM2270MH
Payment & Shipping Terms
Product Description
110BYG High torque 16Nm Nema43 3 phase stepper motor CNC step motor MiGE stepper motor driver kit
Products Description
Step Angle Accuracy
Temperature Rise
Ambient Temperature
Insulation Resistance
Dielectric Srength
Shaft Radial Play
Shaft Axial Play
5%

80℃ Max
-20℃-+50℃
100MΩ Min (500VDC)
500V AC
1 minute
0.06mm
(450g load)
0.08mm
(450g load)
Model
FHB31112
FHB31115
FHB31118
FHB31122
Step Angle(°)
1.2
1.2
1.2
1.2
Length L(mm)
127
151
185
219
Holding Torque
(N.m)
8.0
12
16
20
Current(A/phase)
4.3
6.0
6.4
6.9
Rotor Inertia(g.cm²)
6000
9720
13560
17400
Weight(kg)
5.0
6.3
8.5
10.7
Matcheddriver
HBQ30722A
HBQ30722A
HBQ30722A
HBQ30722A
Shaft Diameter(mm)
19
19
19
19
Axis Stretch(mm)
Flat key6×30
Flat key6×30
Flat key6×30
Flat key6×30
Resistance(Ω)
1.04
0.6
0.7
0.57
Inductance(mH)
4.3
2.67
2.96
2.46
Wiring Diagram
F
F
F
F



The rotor 01

It is forged with imported materials, and each rotor is finely ground and polished to ensure that each tooth groove is smooth.Make the motor run stably, with lower noise, longer life, and no jamming.




02 Motor coil

It is forged with imported materials, and each rotor is finely ground and polished to ensure that each tooth groove is smooth.
Make the motor run stably, with ower noise, longer life, and no jamming.




Fine parts 03

It is forged with imported materials.and each rotor is finely ground and polished to ensure that each tooth groove is smooth. Make
the motor run stably, with lower noise, longer life, and no jamming.




Precise control



Quick start and stop, frequent forward and reverse Precise control, the number of pulses determines the position of the motor





Precise positioning

Pulse frequency determines motor speed, high torque, high speed response and light weight.





Speed control

Speed adjustment is convenient, the pulse frequency determinesthe motor speed, and the motor parameters, output shaft size, and
winding specifications can be made according to requirements
