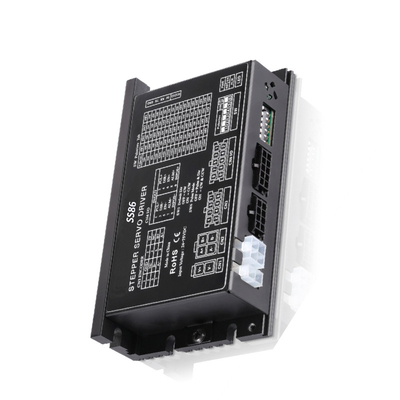

The closed-loop stepper motor drives the industry's latest Cotex - M4 ARM core processor, frequency up to 80 MHZ, makes the external drive response frequency up to 500 KHZ, adapted to 86 closed-loop stepper motor, so that the step motor with high precision, fast response, do not break, and stop when the absolute rest excellent features, such as characteristics of similar products in the industry's current performance is extremely excellent product.
•New Cotex-M4 ARM Core Technology 32-bit Processor
•The main frequency is up to 80MHz
•The maximum no-load running speed of the motor is 4000 RPM
•Motor response frequency up to 500kHz
•Output current up to 8A
•Subdivision up to 25600
•Input voltage up to 80VAC
•Double pulse and pulse plus direction mode switching
•Alarm reset function
•Pulse, direction, compatible with 5-24V input
•Abundant alarm and operation display signals
•Out of step alarm output function
Functional diagram of SS86 closed-loop stepper motor driver
Parameter of SS86 closed-loop stepper motor driver
|
Index |
Min. Value |
Typical value |
Max. Value |
Unit |
|
Input voltage |
20 |
60 |
80 |
VAC |
|
Drive current |
1 |
- |
8.0 |
A |
|
Input pulse frequency |
1 |
- |
500K |
Hz |
|
Input pulse width |
250 |
- |
5E+8 |
ns |
|
Direction signal width |
62.5 |
- |
- |
μs |
|
Input signal voltage |
3.6 |
5 |
24 |
VDC |
|
Output signal current |
- |
- |
100 |
vdc |
|
Output signal voltage |
- |
- |
30 |
mA |
Environmental index of SS86 closed-loop stepper motor driver
|
Cooling type |
Natural or forced cooling
|
|
Usage environment |
Avoid dust, oil and corrosive gases
|
|
Working environmental temperature |
-10~40°C |
|
Maximum ambient humidity |
90%RH(No condensation) |
|
Storage temperature |
-10~70°C |
|
The largest vibration |
5.9m/S2max |
Dimension of SS86 closed-loop stepper motor driver
Driver interface and wiring diagram of SS86 closed-loop stepper motor driver
