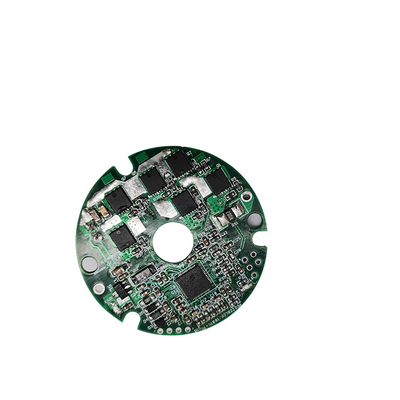

BSDC-2425-BS is a very compact build-in DC motor drive plate with the necessary standard features, low price and reliable performance competitive in industrial and commercial applications. It is also very scalable and uses custom requirements from customers.
The connection is simple, only need to connect UVW three-phase line.The mechanical and electrical structure is simple and reliable.Get rid of the fault point of hall device damage, motor life is not affected by Hall.
MODEL NO. | BSDC-2425-BS |
OPERATING TEMPERATURE | -20℃ - 85℃ |
INPUT VOLTAGE | 24V |
MAX WORKING CURRENT | 11A |
PWM Voltage range | 5V |
Function:
1. Program to set startup parameters,set can not changed offline
2. Two-speed switch controls start and stop
3. Free stop(BK)
4. Drive failure protection
5.PWM speed regulation
6.Multi-gear speed regulation
7.Speed feedback
Terminal connection
1 | FG | speed feedback interface |
2 | PWM IN | PWM IN interface |
3 | RX/K2 | Serial port communication or switch |
4 | TX/K1 | Serial port communication or switch |
5 | GND | Used for Driver board internal control |
6 | U | Motor phase U |
7 | V |
Motor phase V |
8 | W | Motor phase W |
9 | GND | GND input |
10 | +24V | 24VDC input |
Product size:diameter:52mm; highly:17mm
Standard export carton, 250pcs per carton
Carton size: 400*300*250mm, Net.Weight.: 5kgs, Gross.Weight.:6kgs.
Package can be made as customer's design.
24V 250W pwm speed controller brushless motor driver
1. Customized design is available, OEM &ODM are welcomed.
2. One year warranty after products shipped from original port
3. 24-hours online service support
4. Paypal, Western Union, T/T,L/C payment are acceptable
24V 250W pwm speed controller brushless motor driver
1. What can I get the price?
A We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please tell us in your email so that we will regard you inquiry priority.
2. What about the lead time for the mass production?
A Honestly, it depends on the order quantity and the season you place the order.
3. Can I get a discount?
Yes, for the order quantity more than 100 pcs, please contact us to get the best price.
4. We have other functional requirements for the driver. Can we do custom development?
Yes ,we can.Our brushless and sensorless driver already has temperature control, RS485 communication, start-stop control and other functions, while reserving the development interface.Please inform us of your requirements in detail and we will act accordingly.
5. How can I get the sample to check your quality?
A After price confirmation, you can require for samples to check our product’s quality. If you just need a blank sample to check the design and quality. We will provide you sample for free as long as you afford the express freight.
6.What is your after-sales services?
1.Free maintenance within 12 months guarantee, lifetime consultant
2. Professional solutions in installation and maintence
7.How much is the freight and what is the mode of transportation?
The freight is based on the weight of order and the distance of shipment.
For single order , the goods will be deliveried by EMS, DHL, FedEx, TNT and so on.
Please inform us advance if you have special packing and shipment requirement.
