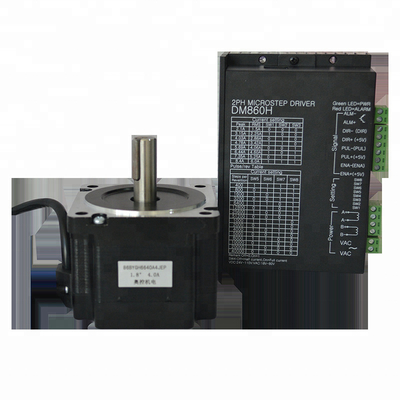

high quality 80mm 8a dm860h nema 4a 34 stepper motor driver for cnc kit 86HS8040+DM860H

2 Pieces
MOQ
$63.50(2 - 9 Pieces) $62.50(>=10 Pieces)
Price
high quality 80mm 8a dm860h nema 4a 34 stepper motor driver for cnc kit 86HS8040+DM860H
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: 86HS8040+DM860H
Phase: 2
Type: Hybrid
Current / Phase: 4A
Name: High Quality Stepper Motor Driver For Cnc Kit
Inductance: 3mH
Rated Voltage: 3V
Testing Deiver: DM860H
Testing Model: 256 Subdivision
Inertia: 1.05g.cm2
Driver Current: 4A
Recommended Motor Model: 86HS8040AJ
Control: 32DSP
Keywords: 2-phase Stepping Driver,stepper Motor Cnc Kit
Certification: Ce, RoHS
Basic Infomation
Certification: ce, RoHS
Model Number: 86HS8040+DM860H, 256 subdivision, 86HS8040AJ
Payment & Shipping Terms
Packaging Details: normal packing
Product Description
Product Description
Title:cnc step motor kit nema 34 150mm plus stepper motor driver 8a dm860h with 256 subdivision
The operation of the stepper motor must be driven by an electronic device. This device is a stepper motor driver, which converts the pulse signal from the control system into the angular displacement of the stepper motor.
MOQ
2 set
Sample time
3-7 days
Production time
7-15 days
Certification
CE & ROHS
After-sales
12 months
delivery time
after get the money if the good is in stock
Description of motor
Features: 1. motor length: 150mm 2. nema 34 stepper motor with driver 3. current: 6A Quality assurance: 1.All stepper motor have CE and ROHS certification 2.All motors are tested by a toasting machine for 72 hours 3.All the motors will be shipped after testing
Description of driver
1.The parameter self-tuning algorithm, motor adaption; 2.Built-in high segmentation 3.Small vibration, low heat, smooth running 4.Middle、high speed torque compensation 5.Current vector control, high current efficiency 6.Built-in acceleration and deceleration control to improve the smoothness of the start-stop 7.The single and double pulse control mode can be selected 8.Motor running position memory 9.The input signal difference optical decoupling is compatible with 5V~24V 10.User customizable segmentation 11.The current ,subdivision dialing is convenient 12.Overcurrent protection, overvoltage protection, undervoltage protection; 13.The green light means to run, the red light means to protect or unmachine
Nema 42 stepper motor Electrical Specifications
Series Model
Step Angle
(°)
Rated Current
(A)
Phase Resistance
(Ω)
Phaes Inductance
(mH)
Holding torque
(N.m)
Detent
Torque
(N.cm)
Rotor Inertia
(g.cm2)
Motor Lenth
(mm)
Lead Wire
(NO)
86HS6640A4
1.8
4
0.6
1.6
3
5.5
0.85
66
4
86HS6650A4
1.8
5
0.4
1
3
5.5
0.85
66
4
86HS6660A4
1.8
6
0.33
3.5
3
5.5
0.85
66
4
86HS8040A4
1.8
4
0.7
3
4
6.5
1.05
80
4
86HS8050A4
1.8
5
0.5
1.8
4
6.5
1.05
80
4
86HS8060A4
1.8
6
0.75
5.6
4
6.5
1.05
80
4
86HS9840A4
1.8
4
0.98
4.1
6.5
9.5
1.55
98
4
86HS9850A4
1.8
5
0.65
2.4
6.5
9.5
1.55
98
4
86HS9860A4
1.8
6
0.33
2.4
6.5
9.5
1.55
98
4
86HS11440A4
1.8
4
1.1
5.5
8.2
12.5
1.8
114
4
86HS11450A4
1.8
5
0.75
3.2
8.2
12.5
1.8
114
4
86HS11460A4
1.8
6
0.5
2.1
8.2
12.5
1.8
114
4
86HS12640A4
1.8
4
1.3
5.8
9.5
18.5
2.2
126
4
86HS12650A4
1.8
5
0.85
3.4
9.5
18.5
2.2
126
4
86HS12660A4
1.8
6
0.65
3.5
9.5
18.5
2.2
126
4
86HS15040A4
1.8
4
1.4
9.2
12
24.5
2.5
150
4
86HS15050A4
1.8
5
0.9
5.2
12
24.5
2.5
150
4
86HS15060A4
1.8
6
0.5
5.2
12
24.5
2.5
150
4
*Tips: We can manufacture products according to custorm's requirments.
Waist
24.4

26
27.9
29.9
31.9
Motor parameter
Model
86HS8040A4J
Step angle
1.8  °/phase
Rated voltage
3  V
Current
4  A/phase
Resistance
0.75 Ω/phase
Inductance
5.6mH/phase
12Holding torque
4.5   N.m
Detent torque
6.5N.cm
Rotor inertia
1050  g.cm2
Motor lenth
80mm
Lead wire
4    NO
Motor weight
2500 g
Driver parameter
Model
DM860H
Input Voltage
DC30V-100V
AC24V-70V
Constant Current
7.5A
Maximum Pulse Frequency
200K
Default Communication Speed
57.6Kbps
CProtection
1.Overcurrent action value Peak12A±10%
2.Overvoltage action value 130VDC
3.Undervoltage action value 20VDC
Dimensions（mm）
150×97.5×53
Using environment
Occasion
Avoid dust, oil mist and corrosive gases as much as possible
Operating temperature
0~70℃
Storage temperature
-20℃~+80℃
Humidity
40~90%RH
Cooling Way
Natural cooling or forced cold wind
Installation method
Winding
Stator waveform caheck
Wiring
Magnetizing
Characteristics check
Shaft height check
Visual inspection
Labelling
Packaging
Detailed Images
material：
Shaft: stainless steel 303; end cap: die-cast aluminum parts; stator: silicon steel sheet;
