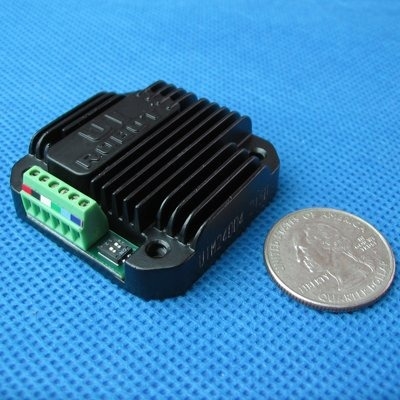

UIM24002 Stepper Motor Driver For UIM24002 Automatic Rolling Door

10 Pieces
MOQ
UIM24002 Stepper Motor Driver For UIM24002 Automatic Rolling Door
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: UIM24002
Motor Type: Stepper Motor
Bipolar: Parallel Port
PMW Chopper: Constant Current
Basic Infomation
Model Number: UIM24002
Payment & Shipping Terms
Packaging Details: export cartons
Supply Ability: 5000 Piece/Pieces per Month
Product Description

stepper motor driver

Optically Isolated Input Interface

UIM240xx controllers’ logic control inputs are all optically isolated. All opto-couplers share

one common anode (Vcc) as shown in above schematic diagram. Typically, Vcc is 5V.

However, 3.3V or voltages higher than 5V are also acceptable, so long as the current

through the opto-coupler’s emitter is between 5~20mA.

Automatic Current Reduction

UIM240XX controller is featured of Auto Current Reduction. If this function is enabled,
when the motor stops running, the phase current will be cut to 30% of the set value. As
soon as the motor goes back to working, the current will go back to the set value. This
function is enabled by turn the DIP1 (figure 0-4) to the ON position.
