Product Model |
AC01-10A-1 |
Brand |
ANCTRONIC |
|
Product SPEC |
AC01A-24V-240W |
Peak Power |
240W |
|
Part Name |

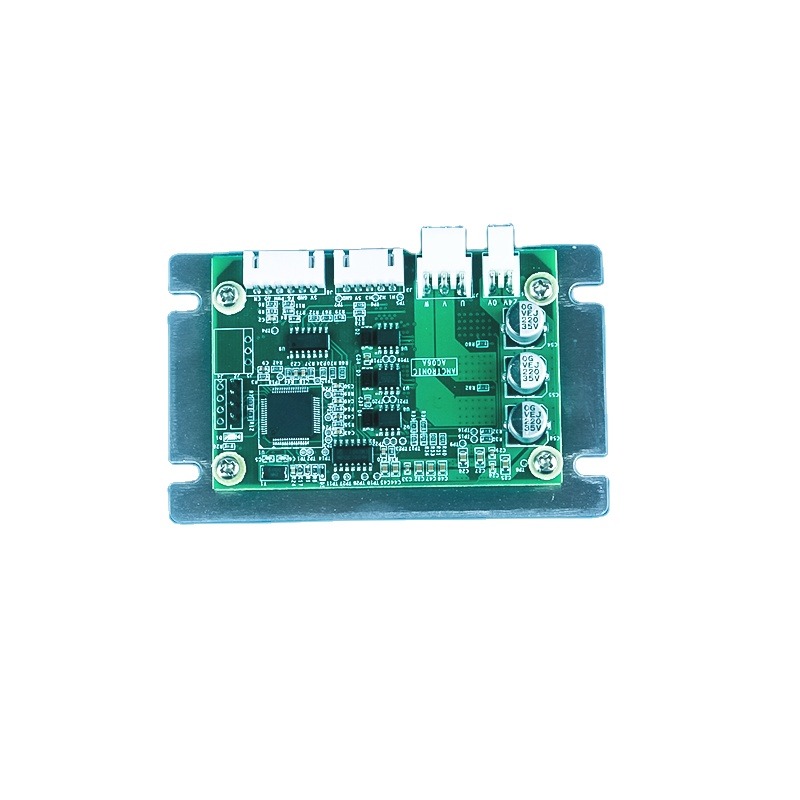

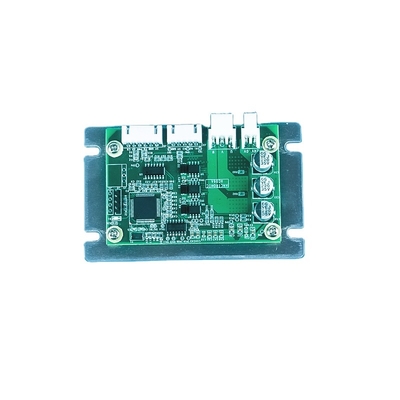

Motor Driver |
Rated Voltage |
24V |
|
Work Temp. |
-20℃-60℃ |
Voltage Range |
14-28V |
|
Humidity |
≤85%RH |
max.Continuous Current |
10A |
|
Current limit |
12A |
max. Peak Current |
20A |
|
FG Speed Feedback |
5V speed pulse output between FG port and the GROUND, one pulse per rotation. |
Commutation Mode |
Hall-less Commutation |
|
PWM Speed Regulating |
PWM frequency 200Hz, can be adjusted between 10%-90%, accordingly motor speed from low to high, less than PWM 10% then stop. |
Lock-rotor Protection |
Y |
|
Size |
w/ Casing:96.0*59.52*24.85(mm) w/o Casing :96.0*63.52*15.8(mm) |
Start-up Diagnostic |
Y |
|
Mass |
w/ Casing:96g (PCBA:27g) w/o Casing:69g |
Forward and reverse control |
N |
|
Casing Color |
Silver |
Speed Regulating |
PWM(5V,200Hz) VSP(0-5V) |
1: Are you factory or only company?
We have factory to produce burshless blowers, fans, motors and motor drivers.
