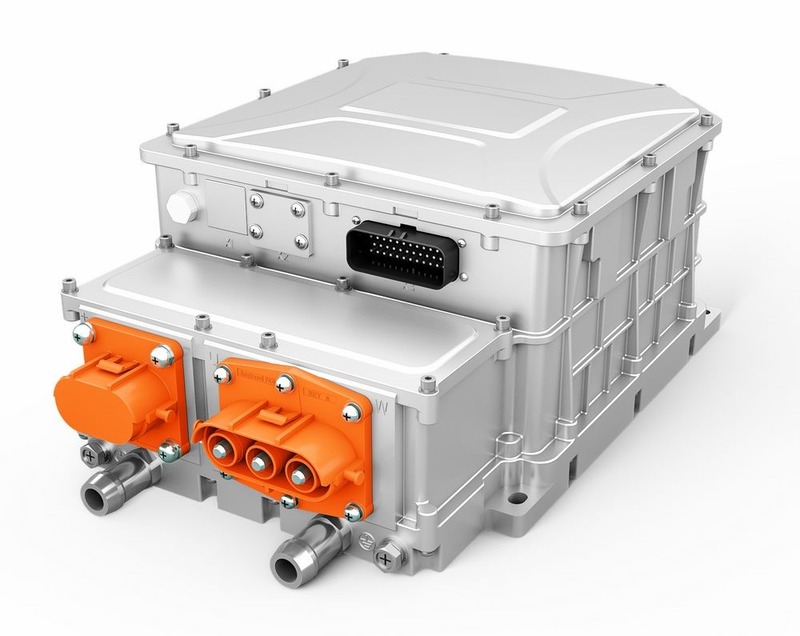

Motor electric vehicle motor controller gtake G01 synchronous/asynchronous controller.

100 Pieces
Motor electric vehicle motor controller gtake G01 synchronous/asynchronous controller.
Features Gallery Product Description Request A Quote
Type: Electric Vehicle Motor Controller
Peak Current: 320A
Input Voltage Range: 200V DC ~ 450V DC / 400V DC ~ 750V DC
Applicable Motor: Synchronous / Asynchronous Motor
Net Weight: 12±0.5 Kg
IP Grade: IP67
Efficiency: ≥98%
Cool Method: Air Cooling
Ambient Temperature: -40 ℃ - 65 ℃
Torque Respond Time: < 5ms
Basic Infomation
Payment & Shipping Terms
Packaging Details: carton, plywood crate
Supply Ability: 10000 Piece/Pieces per Month
Product Description

EV/HEV traction motor controller-G01 frame
Brand: GTAKE
Certificate: CE, RoHS

ModelApplicable motorInput voltage rangePeak currentLow-Voltage range
KTZ54X32SH** Synchronous / asynchronous motor400V DC ~ 750V DC320 A/1min9 ~ 36V DC
KTZ34X32SH**200V DC ~ 450V DC320 A/1min9 ~ 36V DC

Thanks to sophisticated engineers, scientific producing workmanship, rigorous quality control systems and management team, GTAKE EV motor controllers are equipped with advanced features, some of which are listed as below:
01 All GTAKE electric vehicle motor controllers meet the standards GB/T 18488.1, GB/T 2423.17, GB14023.4, and GB/T 17619.4.


Quick torque respond time: <5ms; Torque control accuracy: ±5%.


Key components and parts are specialized for vehicles, with fast response and excellent performance


The main power terminals of GTAKE controllers are configured with automotive grade connectors that the IP protection grade reaches up to IP67. Moreover,it is more convenience and safer for users.


Big power density, compact size and light weight. On the premise of ensuring the power, this can effectively reduce the weight of vehicle body.


Rational placement, delicate material selection, and advanced manufacturing engineering make the IP grade up to IP67 with the lightest weight. Well-designed frames and thickened conformal coating protect the products against harsh environment.


GTAKE EV/HEV drives support terminal control and CAN bus control. The CAN node hardware connection can be realized by GTAKE drives directly, with the transmission baud rate up to 1 Mbps, real-time, safe and reliable.


When the vehicle is geared forward, but there is no step-on gas and brake signal, it could run at the set low speed with a matching output torque according to its load and slope degree of the road, shunned from unexpected slope slipping.


Different filtering tactics in ACR make the output torque smoother with quick response, improving the comfortability for driver and passengers dramatically.


GTAKE motor controllers are equipped with capability of protection on short-circuit, over-current, over-voltage, overheating, over-load, and encoder disconnection, etc. Likewise, the battery protection can be well programmed and the controller can adjust feedback energy grately.


Ambient temperature: -40°C~65°C;


Power Supply
Rated input voltage336V DC / 540V DC
Input voltage range200V DC ~ 450V DC / 400V DC ~ 750V DC
Auxiliary low-voltage power supply9V DC ~ 36V DC

Output Data (U, V, W)
Output peak current320A
Duration1 min
Output frequency range0~1000 Hz

Applicable Motor
TypeSynchronous / asynchronous motor
Position sensorResolver
Temperature sensor typePT100 / PT1000 / NTC
Temperature sensor channel2

CAN Communication
Terminal resisterOptional

Mechanical parameter
Weight12±0.5 kg

VibrationGB/T18488.1-2015, and GB/T 28046.3-2011
HumidityRelative humidity 5% - 95 %. No condensation
Ambient temperature-40ºC - 65 ºC
Altitude0 - 2,000 m
Rated output current derated 1% every 100 m above 1,000 m
Storage temperature-40 - +85 ºC
Efficiency≥98 % at rated working point
IP gradeIP 67
Cooling methodWater cooling


GTAKE EV controller offers speed control and torque control, adaptable to all kinds of electric passenger cars, logistics trucks, mini vehicles, special vehicles, electric bus, electric motorcycle, etc.

Mini Vehicle Logistics Van Passenger cars

Mini Bus 12m Bus More …

Why choose GTAKE electric vehicle motor controller?

In the trend of advocating smart and simple automation, environmentally friendly products, value-added solutions, GTAKE, as one of the world's leading drive manufacturers aggressively investing in R&D, production, and continuous quality improvement, is well positioned to provide its customers with technology-driven, performance-outstanding products such as VFDs, wind power converters, servo drives, HEV/EV drives, helping its customers save energy and increase industrial productivity with sustainability on the one hand, and enhancing their entire value-chain quality, delivery, and services on the other hand.


In production, rigorous quality control is implemented on components, circuit boards, and the finished goods, assuring products without defects.

GTAKE VS Other brands

PerformanceCommon brandsGTAKE
Applicable motorsSynchronous motorsAsynchronous /synchronous motors
Petrol consumption *117.0 L / 100 km15.7 L / 100 km
Power consumption *20.993 kWh/km0.878 kWh/km
Mileage *3220 km240 km
Peak torque *41250 Nm1470 Nm
Slope distance *5> 20 cm

< 10 cm

IP ratingIP 65

IP 67

Ambient temperature -10-40ºC


Customized features (software and/or hardware)Unprocurable or no experience Procurable with rich experience



Taking TM2100Nm+IM800Nm on 12m hybrid bus as an example.


GTAKE + Asynchronous motor PK Competitor + PMSM


30kWh battery + 18kW asynchronous motor used at 4.2m logistics vehicle.


GTAKE can output higher output torque with the same motor.


Anti-slip function test. Test condition: 25% slope

All of this data is collected from actual projects.

Packaging and logistics

All drives are well packed before shipment, fit for air shipment, sea transportation, and express delivery. Customers are able to call its own nominated forwarder or consult GTAKE logistics department for worldwide shipment services.

* Low-power inverters are packed in cardboard box, and others are in plywood cases.

* Plenty of transportation procurable globally in accordance with customer demand or GTAKE expertise.

GTAKE EV motor controllers are able to adapt to electric light EV, passenger car, Hybrid EV, electric bus, logistic van, electric motor cycle, electric boat, electric crane, digger and etc.

Please leave us an inquiry for more details of our EV controller, like information of the model numbers, technical data, applicable application, pricing, warranty terms, lead time and/or customized functionality.
