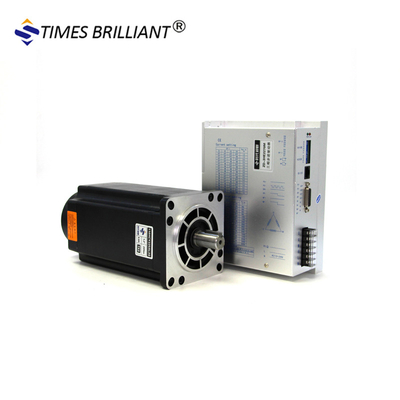

110mm flange nema42 20NM body length 220mm three phase 6.8A stepper motor and driver cnc kit 110HCY220AL3S-TK9

 The marked red part of this motor parameter

Zd-3he2270m is a new generation digital stepper motor drive based on DSP control

Device. Features: motor running steady, almost no vibration and noise, highest positioning accuracy

Up to 60,000 steps/rotation. The product is widely used in engraving machine, medium CNC machine,

Computer embroidery machine, packaging machinery and other higher resolution of large and medium-sized CNC equipment.

Before using this product, it is strongly recommended that you read the following safety precautions and follow them

Use the manual after you have fully understood it.

Product features

· single power input, voltage range: AC110V ~ 220V

· drive current 1.2a/phase to 7.0a/phase split 16 adjustable

· set 16 equal Angle constant torque subdivision, with the highest resolution 60000 steps/rotation,

Other subdivisions can be customized

· the highest reaction frequency can reach 200Kpps

· when the step pulse stops over 100ms, the coil current is automatically reduced to the set current

Half, effectively reduce motor heating

· coupling isolation of interface signals

· internal strong current and weak current photocouple isolation

· signal level: 5V ~ 24V compatible

Working temperature: - 30 ℃ ~ 85 ℃

· applicable motor: three-phase 57, 86, 110, 130, 150 series high voltage motor

· phase memory function (note: the drive will remember automatically after the input stops for more than 3 seconds

At that time, the motor phase, repower or MF signal changed from low level to high current level,

Driver automatically recovers motor phase.

· with the motor inductance adjustment function, the adaptor can exert the maximum efficiency
