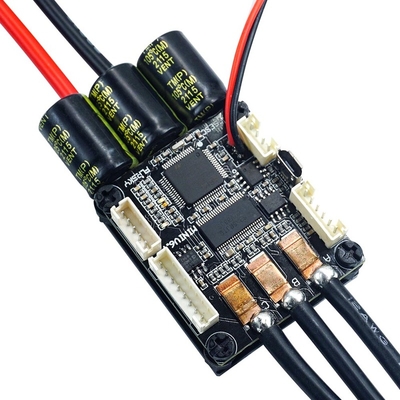

Adult Widely Used Top Quality Mini V6.7 70A DC Motor Brushless Controller For Longboard Electric Skateboard

1 Piece
MOQ
$79.00(1 - 1 Pieces) $77.00(2 - 9 Pieces) $73.00(10 - 49 Pieces) $66.00(>=50 Pieces)
Price
Adult Widely Used Top Quality Mini V6.7 70A DC Motor Brushless Controller For Longboard Electric Skateboard
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Skateboard Parts, Skateboard Parts
Material: Fiberboard, Electric Components
Model Number: Mini V6.7
Size: 67x39x18.7mm
Applicable People: Adult
Product Name: Brushless DC Motor Controller For Electric Longboard Skateboard
BEC: 5V@1A
Lipos: 3-12S
Hardware: V6.7
Firmware: Latest Version
Instantaneous Current: 70A Continuous / 200A
Voltage: 8V-60V (Cells: Safe For 3-12S LiPo)
Certificate: CE ROHS
Basic Infomation
Certification: CE ROHS
Model Number: Mini V6.7
Payment & Shipping Terms
Packaging Details: mini V6.7 70A for Electric Longboard Skateboard: Paper box, bubble paper, foam box
Product Description

Widely Used Superior Quality Brushless DC Motor Controller mini V6.7 70A for Electric Longboard Skateboard
Product Paramenters
Hardware
V6.7
Firmware
Latest Version
Instantaneous current
70A continuous / 200A peak
Voltage
8V-60V (Cells: safe for 3-12S LiPo)
BEC type
Internal driver support
Frequency
PWM input
Reverse
Yes
* Firmware: Latest Version
* Continuous current: 70A; instantaneous current: 200A
* Voltage: 14V-60V(Cells: 4-13S; safe for 4S to 12S, voltage spikes may not exceed 60V! )
* BEC: 5V@1A
* ERPM: 150000
* Control Interface Ports:USB,CAN,UART, SPI, IIC
* Supported Sensors:ABI,HALL,AS5047,AS5048A
* Input Set Support:PPM, ADC, NRF, UART
* Modes:DC, BLDC, FOC (sinusoidal)
* Regenerative capacity: Yes
* Programmable: Yes
* Motor wire: 12AWG
* Power cable:12AWG
* Size:67x39x18.7mm(Including heatsink)

Feature:
Products Description
Product Advantages:
· Accurate current and voltage measurement
· Regenerative braking
· Sensored or sensorless operation + hybrid mode
· Configurable RPM-, current-, voltage- and power limits
· Input source: PPM, Analog, NRF Nyko Kama Nunchuck
· Communication ports: USB, CAN, UART
· Throttle curve and ramping for all input sources
· Seamless 4-quadrant operation
· Motor revolution, amp hour, watt hour counting
· Real time data analysis and read out via communication ports
· Adjustable protection against:
- Low input voltage
- High input voltage
- High motor current
- High input current
- High regenerative braking current (separate limits for the motor and the input)
- High RPM (separate limits for each direction).
- Over tempertaure (MOSFET and motor)
