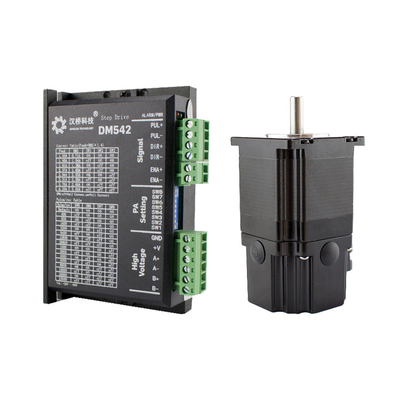

NEMA 23 2.2NM With Brake Motor Stepper Motor And 2 Phase Driver Kit For Cnc Factory Directly 57BYG250DZ+DM542

1 set
MOQ
NEMA 23 2.2NM With Brake Motor Stepper Motor And 2 Phase Driver Kit For Cnc Factory Directly 57BYG250DZ+DM542
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 3 Months
Model Number: 57BYG250DZ+DM542
Phase: 2
Type: Hybrid
Current / Phase: 2.0A
2.2NM With Brake Weight:: 1.68kg
Basic Infomation
Model Number: 57BYG250DZ+DM542
Payment & Shipping Terms
Packaging Details: Cardboard box
Product Description
Stepper drive model parameters
Model
Phase number
Input voltage
Segmentation
Current
Signal voltage
Adaptive motor
DM542-C
Two
24-48(DC)
400-25600
1.0A-4.2A
5V-24V
NEMA 17/23
DM542
Two
24-48(DC)
400-25600
1.0A-4.2A
5V-24V
NEMA 23
DM542-A
Two
24-48(DC)
400-51200
1.0A-4.2A
5V-24V
NEMA 23
DM856
Two
24-80(DC)
400-51200
1.5A-5.6A
5V
NEMA 23
Stepper drive model parameters
Model
Step angle (°)
Holding torque（N.m）
Phase current（A）
Phase inductance（mH）
Phase resistance（Ω）
Rotor inertia（g.㎡）
Weight（Kg）
Motor length（mm）
Shaft diameter（mm）
57BYG250
1.8
0.7
1.0
5.4
5.7
120
0.47
41
8
57BYG250A
1.8
1.0
1.5
12.0
3.5
300
0.63
51
8
57BYG250B
1.8
1.2
2.0
2.5
0.9
350
0.7
56
8
57BYG250C
1.8
1.8
2.8
3.6
1.13
480
1.1
78
8
57BYG250D
1.8
2.2
3.0
5.4
1.4
550
1.3
82
8
57BYG250E
1.8
2.5
3.0
3.6
1.4
700
1.5
93
8
57BYG250H
1.8
3.0
4.0
3.5
1.0
820
2.0
112
8

Heat dissipation
technology of shovel teeth

The drive base adopts mature shovel tooth
(aluminum extrusion) heat dissipation technology
Even in a narrow installation space, it can maintain good
heat dissipation performanceIt is beneficial to prolong
the service life of main board electronic components.
Advanced processing
Technology
The whole body is made of high-strength metal,
which is strong and durable.
The side wall has a frosted metal texture,
which increases the friction and comprehensively improves
the rigidity of the motor, and is not easy to deform.

One body
Three-proof design

Unique high-density three-proof design
which greatly enhances the motor's waterproof
dustproof and anti-aging performance.
